Step 3: Implement Authorization Flow

Now it's time to implement the OAuth 2.0 authorization flow.

IMPORTANT: Authorization requirements depend on your client type:

• Confidential Clients (Server-side): JAR (JWT-Secured Authorization Request) is REQUIRED

• Public Clients (SPAs/Mobile): PKCE is REQUIRED, JAR is FORBIDDEN

📖 Need context? Check the Integration Flow Overview to see how this step fits into the complete process.

🎯 What You'll Learn

In this step, you will learn:

For Confidential Clients (Server-side applications):

• Create JAR (JWT-Secured Authorization Request) - REQUIRED

• Sign authorization parameters in JWT format

• Handle state parameter for CSRF protection

• Redirect users to Oten IDP with signed requests

For Public Clients (SPAs/Mobile apps):

• Implement PKCE (Proof Key for Code Exchange) - REQUIRED

• Generate secure code verifier and challenge

• Handle state parameter for CSRF protection

• Use direct authorization parameters (NO JAR)

📖 Public Client (SPA/Mobile)? For comprehensive PKCE implementation with complete code examples, see the PKCE Implementation Guide or PKCE without JAR Guide.

🔄 Authorization Flow Overview

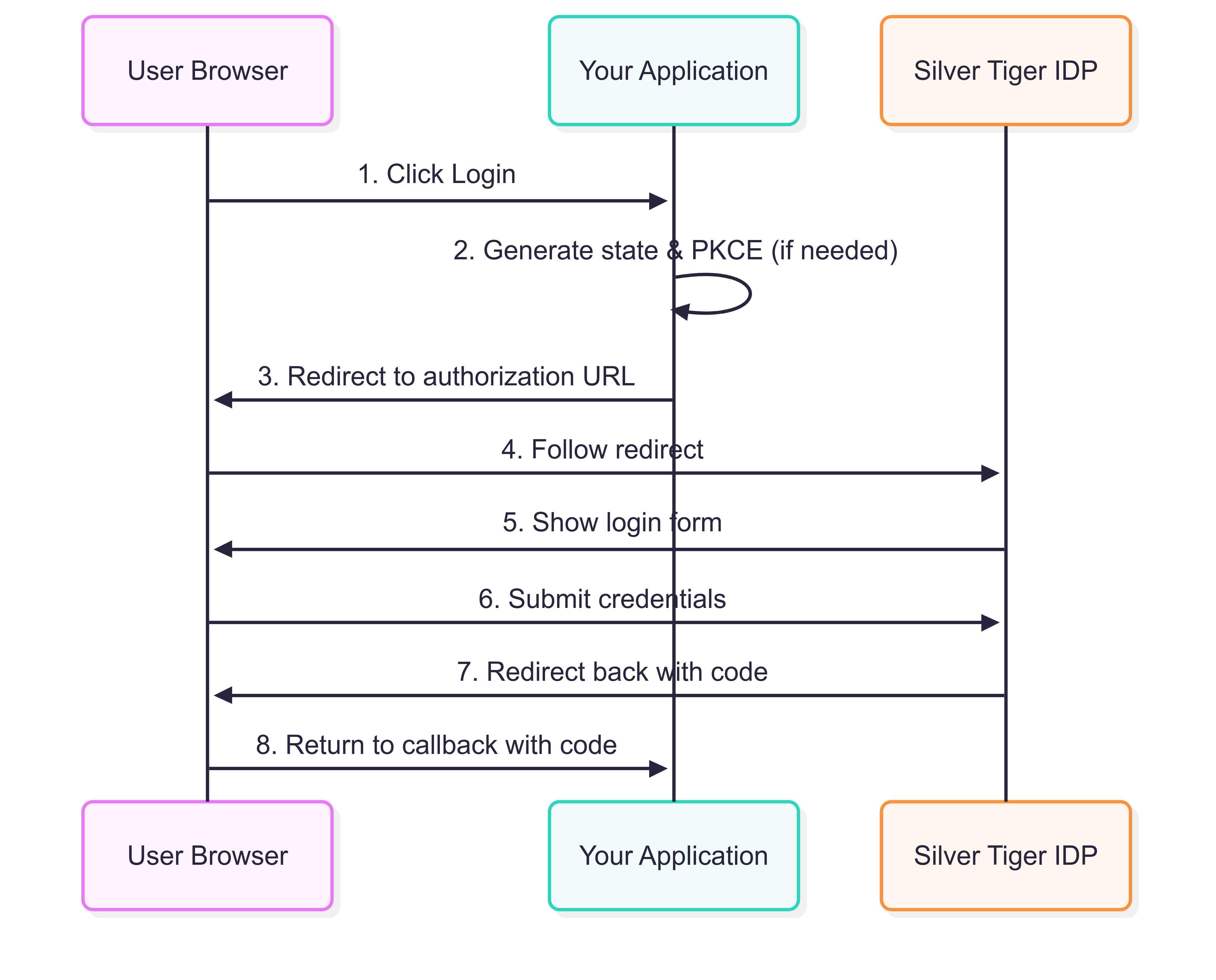

Authorization Flow Overview

This diagram shows the authorization flow. The specific requirements depend on your client type:

• Confidential Clients: Must use JAR (JWT-Secured Authorization Request)

• Public Clients: Must use PKCE with direct parameters (JAR forbidden)

🔒 JAR (JWT-Secured Authorization Request) - For Confidential Clients

Confidential clients (server-side applications) MUST use JAR for enhanced security. Public clients MUST NOT use JAR.

Can't implement JAR? If your confidential client application cannot support JAR due to technical constraints, contact [e-mail] to discuss alternative solutions.

Why JAR is Required for Confidential Clients

// ❌ This will NOT work for confidential clients
const authURL = `https://account.oten.com/v1/oauth/authorize?client_id=${clientId}&redirect_uri=${redirectURI}&response_type=code&scope=openid profile email&state=${state}`;

// ✅ Confidential clients MUST use JAR
const requestJWT = await createJAR(authParams, privateKey);
const authURL = `https://account.oten.com/v1/oauth/authorize?client_id=${clientId}&request=${requestJWT}`;

// ✅ Public clients MUST use direct parameters with PKCE
const authURL = `https://account.oten.com/v1/oauth/authorize?client_id=${clientId}&redirect_uri=${redirectURI}&response_type=code&scope=openid profile email&state=${state}&code_challenge=${codeChallenge}&code_challenge_method=S256`;

JAR Parameters Explained

JAR (JWT Authorization Request) consists of two main parts: JWT Claims and OAuth Parameters. All OAuth parameters must be included in the JWT payload instead of URL query parameters.

Standard JWT Claims (Required)

Parameter	Description	Example	Notes
iss	Issuer - Your client ID	"your-client-id"	Must match client_id
aud	Audience - Oten IDP endpoint	"https://account.oten.com"	Fixed for Oten
iat	Issued At - JWT creation time (Unix timestamp)	1672531200	Current time
exp	Expiration - JWT expiry time (Unix timestamp)	1672531500	Max 5 minutes after iat
jti	JWT ID - Unique identifier for request	"uuid-v4-string"	Prevents replay attacks

🌐 OAuth Parameters (Required)

Parameter	Description	Value	Notes
client_id	Application client ID	"your-client-id"	Must match iss
redirect_uri	Callback URL after authorization	"https://yourapp.com/callback"	Must be pre-registered
response_type	Desired response type	"code"	Always "code" for Authorization Code flow
scope	Requested access permissions	"openid profile email"	Minimum requires "openid"
state	CSRF protection parameter	"random-string-32-chars"	Protects against CSRF

🔐 PKCE Parameters (REQUIRED for Public Clients)

Parameter	Description	Example	Notes
code_challenge	SHA256 hash of code_verifier	"E9Melhoa2OwvFrEMTJguCHaoeK1t8URWbuGJSstw-cM"	Base64URL encoded
code_challenge_method	Hash method	"S256"	Always "S256"

🎨 UI/UX Parameters (Optional)

Parameter	Description	Default Value	Examples
prompt	UI display behavior	"consent"	"none", "login", "consent", "select_account"
ui_locales	Interface language	"en-US"	"vi-VN", "en-US", "ja-JP"
login_hint	Email/username hint	-	"[e-mail]"
max_age	Max time since last login (seconds)	3600	0 (force re-auth), 7200

🏢 Oten Specific Parameters (Optional)

Parameter	Description	Example	Notes
workspace_hint	Workspace ID hint	"workspace-123"	Auto-select workspace
nonce	Random value to link ID token	"random-nonce-value"	Additional security

📝 Complete JAR Payload Example

// JAR Payload for CONFIDENTIAL CLIENTS ONLY
const jarPayload = {
  // === JWT Claims (Required) ===
  iss: "your-client-id",                    // Issuer
  aud: "https://account.oten.com", // Audience
  iat: 1672531200,                          // Issued at (now)
  exp: 1672531500,                          // Expires (5 minutes later)
  jti: "550e8400-e29b-41d4-a716-446655440000", // Unique ID

  // === OAuth Parameters (Required) ===
  client_id: "your-client-id",              // Client ID
  redirect_uri: "https://yourapp.com/callback", // Callback URL
  response_type: "code",                    // Authorization code flow
  scope: "openid profile email",           // Requested scopes
  state: "abc123def456ghi789",              // CSRF protection

  // === PKCE Parameters (Optional for confidential clients) ===
  code_challenge: "E9Melhoa2OwvFrEMTJguCHaoeK1t8URWbuGJSstw-cM",
  code_challenge_method: "S256",

  // === UI/UX Parameters (Optional) ===
  prompt: "consent",                        // Always show consent screen
  ui_locales: "en-US",                      // English interface
  login_hint: "[e-mail]",           // Email hint
  max_age: 3600,                           // Re-auth if > 1 hour

  // === Oten Specific (Optional) ===
  workspace_hint: "workspace-123",          // Workspace hint
  nonce: "random-nonce-for-security"        // ID token security
};

// ⚠️ PUBLIC CLIENTS: DO NOT USE JAR - Use direct parameters instead
// See PKCE without JAR guide for public client implementation

🎯 JAR Parameter Usage Examples

Prompt Parameter Values

// Prompt parameter values and their meanings:
const promptOptions = {
  "none": "No UI shown, auto-authorize if already logged in",
  "login": "Force user to login again",
  "consent": "Show consent screen (default)",
};

// Usage example:
const jarPayload = {
  // ... other parameters
  prompt: "login",  // Force re-login
  max_age: 0       // Combined with max_age=0 to force re-authentication
};

UI Locales Support (coming soon)

// Supported languages:
const supportedLocales = {
  "en-US": "English (United States)",
  "vi-VN": "Tiếng Việt (Vietnam)",
  "ar-AE": "United Arab Emirates",
};

// Multi-locale example:
const jarPayload = {
  // ... other parameters
  ui_locales: "vi-VN en-US",  // Prefer Vietnamese, fallback to English
};

Workspace Hint Usage (coming soon)

// Auto-select workspace for user:
const jarPayload = {
  // ... other parameters
  workspace_hint: "workspace-abc123",  // User will be redirected to this workspace
  login_hint: "[e-mail]"       // Combined with login hint (coming soon)
};

Advanced Security with Nonce

// Generate nonce for ID token security:
function generateNonce() {
  return crypto.randomBytes(16).toString('hex');
}

const jarPayload = {
  // ... other parameters
  nonce: generateNonce(),  // Will be included in ID token
};

// Verify nonce in ID token after receiving callback
function verifyIDToken(idToken, expectedNonce) {
  const decoded = jwt.decode(idToken);
  if (decoded.nonce !== expectedNonce) {
    throw new Error('Nonce mismatch - possible token replay attack');
  }
}

JAR Implementation (Confidential Clients Only)

Oten IDP supports two signing methods for confidential clients:

Method 1: HS256 (Client Secret) - Simpler

const jwt = require('jsonwebtoken');
const crypto = require('crypto');

async function createJAR_HS256(authParams, clientSecret) {
  const now = Math.floor(Date.now() / 1000);

  const jarPayload = {
    // Standard JWT claims
    iss: authParams.client_id, // Issuer (your client ID)
    aud: 'https://account.oten.com', // Audience (Oten)
    iat: now, // Issued at
    exp: now + 300, // Expires in 5 minutes
    jti: crypto.randomUUID(), // Unique identifier

    // OAuth parameters (ALL parameters must be in JAR)
    client_id: authParams.client_id,
    redirect_uri: authParams.redirect_uri,
    response_type: authParams.response_type,
    scope: authParams.scope,
    state: authParams.state,

    // PKCE parameters (if using)
    code_challenge: authParams.code_challenge,
    code_challenge_method: authParams.code_challenge_method,

    // Additional parameters
    ui_locales: 'en-US',
    prompt: 'consent'
  };

  // Sign the JWT with client secret (HS256)
  const requestJWT = jwt.sign(jarPayload, clientSecret, {
    algorithm: 'HS256'
  });

  return requestJWT;
}

Method 2: EdDSA (Ed25519 Key Pair) - More Secure

const jwt = require('jsonwebtoken');
const crypto = require('crypto');
const fs = require('fs');

async function createJAR_EdDSA(authParams, privateKeyPath) {
  const privateKey = fs.readFileSync(privateKeyPath, 'utf8');
  const now = Math.floor(Date.now() / 1000);

  const jarPayload = {
    // Standard JWT claims
    iss: authParams.client_id, // Issuer (your client ID)
    aud: 'https://account.oten.com', // Audience (Oten)
    iat: now, // Issued at
    exp: now + 300, // Expires in 5 minutes
    jti: crypto.randomUUID(), // Unique identifier

    // OAuth parameters (ALL parameters must be in JAR)
    client_id: authParams.client_id,
    redirect_uri: authParams.redirect_uri,
    response_type: authParams.response_type,
    scope: authParams.scope,
    state: authParams.state,

    // PKCE parameters (if using)
    code_challenge: authParams.code_challenge,
    code_challenge_method: authParams.code_challenge_method,

    // Additional parameters
    ui_locales: 'en-US',
    prompt: 'consent'
  };

  // Sign the JWT with Ed25519 private key
  const requestJWT = jwt.sign(jarPayload, privateKey, {
    algorithm: 'EdDSA',
    keyid: 'jar-key-1' // Must match your JWKS
  });

  return requestJWT;
}

### Complete JAR Authorization Flow

```javascript
const crypto = require('crypto');

function generateState() {
  return crypto.randomBytes(32).toString('hex');
}

function generatePKCE() {
  // Generate code verifier (43-128 characters)
  const codeVerifier = crypto.randomBytes(96).toString('base64url');

  // Generate code challenge
  const codeChallenge = crypto
    .createHash('sha256')
    .update(codeVerifier)
    .digest('base64url');

  return {
    codeVerifier,
    codeChallenge,
    codeChallengeMethod: 'S256'
  };
}

// Option 1: Using HS256 (Client Secret)
async function createAuthorizationURL_HS256() {
  const state = generateState();
  const pkce = generatePKCE();

  // Store session data
  req.session.oauthState = state;
  req.session.codeVerifier = pkce.codeVerifier;

  const authParams = {
    client_id: process.env.OTEN_CLIENT_ID,
    redirect_uri: process.env.OTEN_REDIRECT_URI,
    response_type: 'code',
    scope: 'openid profile email',
    state: state,
    code_challenge: pkce.codeChallenge,
    code_challenge_method: pkce.codeChallengeMethod
  };

  // Create JAR with client secret (HS256)
  const requestJWT = await createJAR_HS256(authParams, process.env.OTEN_CLIENT_SECRET);

  // Create authorization URL with JAR
  const authURL = new URL('https://account.oten.com/v1/oauth/authorize');
  authURL.searchParams.set('client_id', authParams.client_id);
  authURL.searchParams.set('request', requestJWT);

  return authURL.toString();
}

// Option 2: Using EdDSA (Ed25519 Key Pair)
async function createAuthorizationURL_EdDSA() {
  const state = generateState();
  const pkce = generatePKCE();

  // Store session data
  req.session.oauthState = state;
  req.session.codeVerifier = pkce.codeVerifier;

  const authParams = {
    client_id: process.env.OTEN_CLIENT_ID,
    redirect_uri: process.env.OTEN_REDIRECT_URI,
    response_type: 'code',
    scope: 'openid profile email',
    state: state,
    code_challenge: pkce.codeChallenge,
    code_challenge_method: pkce.codeChallengeMethod
  };

  // Create JAR with Ed25519 private key
  const requestJWT = await createJAR_EdDSA(authParams, process.env.JAR_PRIVATE_KEY_PATH);

  // Create authorization URL with JAR
  const authURL = new URL('https://account.oten.com/v1/oauth/authorize');
  authURL.searchParams.set('client_id', authParams.client_id);
  authURL.searchParams.set('request', requestJWT);

  return authURL.toString();
}

🔑 JAR Key Management

For HS256 (Client Secret) - No Key Generation Needed

When using HS256, you use your existing client secret:

// No key generation needed - use your client secret
const clientSecret = process.env.OTEN_CLIENT_SECRET;

// Create JAR with HS256
const requestJWT = await createJAR_HS256(authParams, clientSecret);

For EdDSA (Ed25519) - Key Generation Required

When using EdDSA, you need to generate Ed25519 key pairs:

const fs = require('fs');
const crypto = require('crypto');

// Generate Ed25519 key pair for JAR signing
function generateJARKeys() {
  const { publicKey, privateKey } = crypto.generateKeyPairSync('ed25519', {
    publicKeyEncoding: {
      type: 'spki',
      format: 'pem'
    },
    privateKeyEncoding: {
      type: 'pkcs8',
      format: 'pem'
    }
  });

  // Save keys securely
  fs.writeFileSync('jar-private-key.pem', privateKey);
  fs.writeFileSync('jar-public-key.pem', publicKey);

  return { publicKey, privateKey };
}

// Create JWKS for your Ed25519 public key
function createJWKS(publicKey) {
  const jwk = crypto.createPublicKey(publicKey).export({
    format: 'jwk'
  });

  return {
    keys: [{
      ...jwk,
      kid: 'jar-key-1', // Key ID
      use: 'sig', // Signature use
      alg: 'EdDSA' // Algorithm for Ed25519
    }]
  };
}

🌐 Implementation Examples

Express.js Implementation

Option 1: Using HS256 (Client Secret)

const express = require('express');
const session = require('express-session');
const jwt = require('jsonwebtoken');
const app = express();

// Session configuration
app.use(session({
  secret: process.env.SESSION_SECRET,
  resave: false,
  saveUninitialized: false,
  cookie: {
    secure: process.env.NODE_ENV === 'production',
    httpOnly: true,
    maxAge: 30 * 60 * 1000 // 30 minutes
  }
}));

// Login route with HS256 JAR
app.get('/login', async (req, res) => {
  try {
    const authURL = await createAuthorizationURL_HS256();
    res.redirect(authURL);
  } catch (error) {
    console.error('JAR login error:', error);
    res.status(500).send('Login failed');
  }
});

// No JWKS endpoint needed for HS256

Option 2: Using EdDSA (Ed25519 Key Pair)

const express = require('express');
const session = require('express-session');
const jwt = require('jsonwebtoken');
const fs = require('fs');
const app = express();

// Session configuration
app.use(session({
  secret: process.env.SESSION_SECRET,
  resave: false,
  saveUninitialized: false,
  cookie: {
    secure: process.env.NODE_ENV === 'production',
    httpOnly: true,
    maxAge: 30 * 60 * 1000 // 30 minutes
  }
}));

// JWKS endpoint (REQUIRED for EdDSA)
app.get('/.well-known/jwks.json', (req, res) => {
  const jwks = createJWKS();
  res.json(jwks);
});

// Login route with EdDSA JAR
app.get('/login', async (req, res) => {
  try {
    const authURL = await createAuthorizationURL_EdDSA();
    res.redirect(authURL);
  } catch (error) {
    console.error('JAR login error:', error);
    res.status(500).send('Login failed');
  }
});

function createJWKS() {
  const publicKeyPem = fs.readFileSync('jar-public-key.pem', 'utf8');
  const publicKey = crypto.createPublicKey(publicKeyPem);
  const jwk = publicKey.export({ format: 'jwk' });

  return {
    keys: [{
      ...jwk,
      kid: 'jar-key-1',
      use: 'sig',
      alg: 'EdDSA'
    }]
  };
}

React SPA Implementation

Note: For SPAs, you'll need a backend service to create JAR since private keys cannot be stored in browsers.

// AuthService.js
class AuthService {
  constructor() {
    this.clientId = process.env.REACT_APP_CLIENT_ID;
    this.redirectUri = `${window.location.origin}/callback`;
  }

  async login() {
    try {
      // Generate PKCE parameters
      const pkce = await this.generatePKCE();
      const state = this.generateState();

      // Store in session storage
      sessionStorage.setItem('code_verifier', pkce.codeVerifier);
      sessionStorage.setItem('oauth_state', state);

      // Call backend to create JAR
      const jarResponse = await fetch('/api/create-jar', {
        method: 'POST',
        headers: { 'Content-Type': 'application/json' },
        body: JSON.stringify({
          client_id: this.clientId,
          redirect_uri: this.redirectUri,
          response_type: 'code',
          scope: 'openid profile email',
          state: state,
          code_challenge: pkce.codeChallenge,
          code_challenge_method: 'S256'
        })
      });

      const { requestJWT } = await jarResponse.json();

      // Redirect to Oten with JAR
      const authURL = new URL('https://account.oten.com/v1/oauth/authorize');
      authURL.searchParams.set('client_id', this.clientId);
      authURL.searchParams.set('request', requestJWT);

      window.location.href = authURL.toString();
    } catch (error) {
      console.error('Login failed:', error);
      throw error;
    }
  }

  async generatePKCE() {
    const codeVerifier = this.generateRandomString(128);
    const encoder = new TextEncoder();
    const data = encoder.encode(codeVerifier);
    const digest = await window.crypto.subtle.digest('SHA-256', data);
    const codeChallenge = this.base64URLEncode(digest);

    return { codeVerifier, codeChallenge };
  }

  generateState() {
    return this.generateRandomString(32);
  }

  generateRandomString(length) {
    const charset = 'ABCDEFGHIJKLMNOPQRSTUVWXYZabcdefghijklmnopqrstuvwxyz0123456789-._~';
    let result = '';
    for (let i = 0; i < length; i++) {
      result += charset.charAt(Math.floor(Math.random() * charset.length));
    }
    return result;
  }

  base64URLEncode(buffer) {
    const bytes = new Uint8Array(buffer);
    const binary = String.fromCharCode(...bytes);
    return btoa(binary).replace(/\+/g, '-').replace(/\//g, '_').replace(/=/g, '');
  }
}

// Backend endpoint to create JAR
app.post('/api/create-jar', async (req, res) => {
  try {
    const authParams = req.body;
    const requestJWT = await createJAR(authParams, process.env.JAR_PRIVATE_KEY_PATH);
    res.json({ requestJWT });
  } catch (error) {
    console.error('JAR creation failed:', error);
    res.status(500).json({ error: 'Failed to create JAR' });
  }
});

Python Flask Implementation

from flask import Flask, session, redirect, url_for, request
from authlib.integrations.flask_client import OAuth
import secrets
import hashlib
import base64

app = Flask(__name__)
app.secret_key = os.environ.get('SESSION_SECRET')

oauth = OAuth(app)
oten = oauth.register(
    name='oten',
    client_id=os.environ.get('OTEN_CLIENT_ID'),
    client_secret=os.environ.get('OTEN_CLIENT_SECRET'),
    server_metadata_url='https://account.oten.com/.well-known/openid_configuration',
    client_kwargs={'scope': 'openid profile email'}
)

def generate_pkce():
    """Generate PKCE code verifier and challenge"""
    code_verifier = base64.urlsafe_b64encode(secrets.token_bytes(96)).decode('utf-8').rstrip('=')
    code_challenge = base64.urlsafe_b64encode(
        hashlib.sha256(code_verifier.encode('utf-8')).digest()
    ).decode('utf-8').rstrip('=')

    return code_verifier, code_challenge

@app.route('/login')
def login():
    # Generate PKCE parameters
    code_verifier, code_challenge = generate_pkce()

    # Store code verifier in session
    session['code_verifier'] = code_verifier

    # Create authorization URL with PKCE
    redirect_uri = url_for('callback', _external=True)
    return oten.authorize_redirect(
        redirect_uri,
        code_challenge=code_challenge,
        code_challenge_method='S256'
    )

@app.route('/callback')
def callback():
    # Handle the callback (covered in next step)
    pass

🎛️ Advanced JAR Parameters

Custom Parameters in JAR

async function createAdvancedJAR(authParams, privateKeyPath, options = {}) {
  const privateKey = fs.readFileSync(privateKeyPath, 'utf8');
  const now = Math.floor(Date.now() / 1000);

  const jarPayload = {
    // Standard JWT claims
    iss: authParams.client_id,
    aud: 'https://account.oten.com',
    iat: now,
    exp: now + 300,
    jti: crypto.randomUUID(),

    // Required OAuth parameters
    client_id: authParams.client_id,
    redirect_uri: authParams.redirect_uri,
    response_type: authParams.response_type,
    scope: authParams.scope,
    state: authParams.state,

    // PKCE parameters
    code_challenge: authParams.code_challenge,
    code_challenge_method: authParams.code_challenge_method,

    // Advanced parameters
    prompt: options.prompt || 'consent',
    ui_locales: options.uiLocales || 'en-US',
    login_hint: options.loginHint,
    max_age: options.maxAge || 3600,

    // Custom Oten parameters
    workspace_hint: options.workspaceHint,

    // Additional security parameters
    nonce: crypto.randomBytes(16).toString('hex')
  };

  // Remove undefined values
  Object.keys(jarPayload).forEach(key => {
    if (jarPayload[key] === undefined) {
      delete jarPayload[key];
    }
  });

  return jwt.sign(jarPayload, privateKey, {
    algorithm: 'RS256',
    keyid: process.env.JAR_KEY_ID || 'jar-key-1'
  });
}

JAR with Different Options

async function createAuthorizationURL(options = {}) {
  const state = generateState();
  const pkce = generatePKCE();

  // Store session data
  req.session.oauthState = state;
  req.session.codeVerifier = pkce.codeVerifier;

  const authParams = {
    client_id: process.env.OTEN_CLIENT_ID,
    redirect_uri: process.env.OTEN_REDIRECT_URI,
    response_type: 'code',
    scope: options.scope || 'openid profile email',
    state: state,
    code_challenge: pkce.codeChallenge,
    code_challenge_method: 'S256'
  };

  // Create JAR with custom options
  const requestJWT = await createAdvancedJAR(authParams, process.env.JAR_PRIVATE_KEY_PATH, {
    prompt: options.prompt,
    loginHint: options.loginHint,
    workspaceHint: options.workspaceHint,
    uiLocales: options.uiLocales,
    maxAge: options.maxAge
  });

  // Create authorization URL (JAR is REQUIRED)
  const authURL = new URL('https://account.oten.com/v1/oauth/authorize');
  authURL.searchParams.set('client_id', authParams.client_id);
  authURL.searchParams.set('request', requestJWT);

  return authURL.toString();
}

// Usage examples
const basicAuthURL = await createAuthorizationURL();
const forcedConsentURL = await createAuthorizationURL({ prompt: 'consent' });
const workspaceHintURL = await createAuthorizationURL({ workspaceHint: 'workspace-123' });

JAR Parameter Validation

Required Parameter Validation

function validateJARParameters(authParams) {
  const errors = [];

  // Validate required OAuth parameters
  const requiredParams = ['client_id', 'redirect_uri', 'response_type', 'scope', 'state'];
  requiredParams.forEach(param => {
    if (!authParams[param]) {
      errors.push(`Missing required parameter: ${param}`);
    }
  });

  // Validate response_type
  if (authParams.response_type !== 'code') {
    errors.push('response_type must be "code" for Authorization Code flow');
  }

  // Validate scope
  if (authParams.scope && !authParams.scope.includes('openid')) {
    errors.push('scope must include "openid" for OpenID Connect');
  }

  // Validate redirect_uri format
  if (authParams.redirect_uri) {
    try {
      new URL(authParams.redirect_uri);
    } catch (e) {
      errors.push('redirect_uri must be a valid URL');
    }
  }

  // Validate PKCE parameters
  if (authParams.code_challenge) {
    if (!authParams.code_challenge_method) {
      errors.push('code_challenge_method is required when using PKCE');
    } else if (authParams.code_challenge_method !== 'S256') {
      errors.push('code_challenge_method must be "S256"');
    }
  }

  // Validate state length (recommended 32+ characters)
  if (authParams.state && authParams.state.length < 32) {
    errors.push('state parameter should be at least 32 characters for security');
  }

  return errors;
}

// Usage example:
const authParams = {
  client_id: process.env.OTEN_CLIENT_ID,
  redirect_uri: process.env.OTEN_REDIRECT_URI,
  response_type: 'code',
  scope: 'openid profile email',
  state: generateState(),
  code_challenge: pkce.codeChallenge,
  code_challenge_method: 'S256'
};

const validationErrors = validateJARParameters(authParams);
if (validationErrors.length > 0) {
  throw new Error('JAR validation failed: ' + validationErrors.join(', '));
}

JWT Claims Validation

function validateJWTClaims(jarPayload) {
  const errors = [];
  const now = Math.floor(Date.now() / 1000);

  // Validate required JWT claims
  const requiredClaims = ['iss', 'aud', 'iat', 'exp', 'jti'];
  requiredClaims.forEach(claim => {
    if (!jarPayload[claim]) {
      errors.push(`Missing required JWT claim: ${claim}`);
    }
  });

  // Validate issuer matches client_id
  if (jarPayload.iss !== jarPayload.client_id) {
    errors.push('iss (issuer) must match client_id');
  }

  // Validate audience
  if (jarPayload.aud !== 'https://account.oten.com') {
    errors.push('aud (audience) must be Oten IDP endpoint');
  }

  // Validate timing
  if (jarPayload.iat > now + 60) {
    errors.push('iat (issued at) cannot be in the future');
  }

  if (jarPayload.exp <= now) {
    errors.push('exp (expiration) must be in the future');
  }

  if (jarPayload.exp > jarPayload.iat + 300) {
    errors.push('exp (expiration) should not be more than 5 minutes after iat');
  }

  // Validate JTI format (should be UUID)
  const uuidRegex = /^[0-9a-f]{8}-[0-9a-f]{4}-[1-5][0-9a-f]{3}-[89ab][0-9a-f]{3}-[0-9a-f]{12}$/i;
  if (jarPayload.jti && !uuidRegex.test(jarPayload.jti)) {
    errors.push('jti should be a valid UUID format');
  }

  return errors;
}

🚨 Common JAR Parameter Errors

Error: "Invalid request parameter"

// ❌ Problem: Missing required parameters in JAR
const incompleteJAR = {
  iss: "client-id",
  aud: "https://account.oten.com",
  // Missing: iat, exp, jti, client_id, redirect_uri, etc.
};

// ✅ Solution: Include all required parameters
const completeJAR = {
  // JWT Claims
  iss: "client-id",
  aud: "https://account.oten.com",
  iat: Math.floor(Date.now() / 1000),
  exp: Math.floor(Date.now() / 1000) + 300,
  jti: crypto.randomUUID(),

  // OAuth Parameters
  client_id: "client-id",
  redirect_uri: "https://app.com/callback",
  response_type: "code",
  scope: "openid profile email",
  state: "secure-random-state"
};

Error: "JWT signature verification failed"

// ❌ Problem: Wrong signing algorithm or key
const wrongAlgorithm = jwt.sign(payload, secret, { algorithm: 'RS256' }); // Not supported

// ✅ Solution: Use supported algorithms
const correctHS256 = jwt.sign(payload, clientSecret, { algorithm: 'HS256' });
const correctEdDSA = jwt.sign(payload, privateKey, { algorithm: 'EdDSA', keyid: 'jar-key-1' });

Error: "Request JWT expired"

// ❌ Problem: JAR expired or wrong timing
const expiredJAR = {
  iat: Math.floor(Date.now() / 1000) - 600, // 10 minutes ago
  exp: Math.floor(Date.now() / 1000) - 300, // 5 minutes ago (expired)
};

// ✅ Solution: Proper timing
const validJAR = {
  iat: Math.floor(Date.now() / 1000),       // Now
  exp: Math.floor(Date.now() / 1000) + 300, // 5 minutes from now
};

Error: "Invalid redirect_uri"

// ❌ Problem: Redirect URI not registered or mismatched
const wrongRedirectURI = {
  redirect_uri: "https://different-domain.com/callback" // Not registered
};

// ✅ Solution: Use exact registered URI
const correctRedirectURI = {
  redirect_uri: "https://yourapp.com/callback" // Must match registration exactly
};

🧪 Testing JAR Implementation

Test JAR Creation

async function testJARCreation() {
  console.log('=== Testing JAR Creation ===');

  try {
    const authParams = {
      client_id: process.env.OTEN_CLIENT_ID,
      redirect_uri: process.env.OTEN_REDIRECT_URI,
      response_type: 'code',
      scope: 'openid profile email',
      state: 'test-state-123',
      code_challenge: 'test-challenge',
      code_challenge_method: 'S256'
    };

    const requestJWT = await createJAR(authParams, process.env.JAR_PRIVATE_KEY_PATH);
    console.log('✅ JAR created successfully');
    console.log('JAR length:', requestJWT.length);

    // Decode JWT to verify structure (without verification)
    const decoded = jwt.decode(requestJWT, { complete: true });
    console.log('JAR header:', decoded.header);
    console.log('JAR payload keys:', Object.keys(decoded.payload));

    return requestJWT;
  } catch (error) {
    console.error('❌ JAR creation failed:', error);
    throw error;
  }
}

Test JWKS Endpoint

async function testJWKSEndpoint() {
  console.log('=== Testing JWKS Endpoint ===');

  try {
    const response = await fetch('https://yourapp.com/.well-known/jwks.json');

    if (!response.ok) {
      throw new Error(`JWKS endpoint returned ${response.status}`);
    }

    const jwks = await response.json();

    // Validate JWKS structure
    if (!jwks.keys || !Array.isArray(jwks.keys)) {
      throw new Error('Invalid JWKS structure');
    }

    if (jwks.keys.length === 0) {
      throw new Error('No keys in JWKS');
    }

    const key = jwks.keys[0];
    const requiredFields = ['kty', 'use', 'kid', 'alg', 'n', 'e'];
    const missingFields = requiredFields.filter(field => !key[field]);

    if (missingFields.length > 0) {
      throw new Error(`Missing JWKS fields: ${missingFields.join(', ')}`);
    }

    console.log('✅ JWKS endpoint is valid');
    console.log('Key ID:', key.kid);
    console.log('Algorithm:', key.alg);

  } catch (error) {
    console.error('❌ JWKS endpoint test failed:', error);
    throw error;
  }
}

Validate JAR Authorization URL

function validateJARAuthorizationURL(url) {
  const urlObj = new URL(url);
  const params = urlObj.searchParams;

  // For JAR, only client_id and request parameters are required
  const required = ['client_id', 'request'];
  const missing = required.filter(param => !params.has(param));

  if (missing.length > 0) {
    throw new Error(`Missing required JAR parameters: ${missing.join(', ')}`);
  }

  const requestJWT = params.get('request');

  // Basic JWT format validation
  const jwtParts = requestJWT.split('.');
  if (jwtParts.length !== 3) {
    throw new Error('Invalid JWT format in request parameter');
  }

  try {
    // Decode header and payload (without verification)
    const header = JSON.parse(atob(jwtParts[0]));
    const payload = JSON.parse(atob(jwtParts[1]));

    // Validate header algorithm
    const supportedAlgorithms = ['HS256', 'EdDSA'];
    if (!supportedAlgorithms.includes(header.alg)) {
      throw new Error('JAR must use HS256 or EdDSA algorithm');
    }

    // Kid is only required for EdDSA (not for HS256)
    if (header.alg === 'EdDSA' && !header.kid) {
      throw new Error('JAR header must include kid (key ID) for EdDSA');
    }

    // Validate payload
    const requiredClaims = ['iss', 'aud', 'iat', 'exp', 'client_id', 'redirect_uri', 'response_type'];
    const missingClaims = requiredClaims.filter(claim => !payload[claim]);

    if (missingClaims.length > 0) {
      throw new Error(`Missing JAR claims: ${missingClaims.join(', ')}`);
    }

    console.log('✅ JAR authorization URL validation passed');
    return true;

  } catch (error) {
    if (error.message.includes('Missing JAR claims')) {
      throw error;
    }
    throw new Error('Failed to decode JAR: ' + error.message);
  }
}

Authorization Flow Checklist

Before proceeding to the callback handling, verify your implementation based on client type:

For Confidential Clients (Server-side) - JAR Required

HS256 (Client Secret)

• JAR is implemented (REQUIRED for confidential clients)

• Client secret is stored securely

• JWT library supports HS256 signing

• State parameter is generated and included in JAR

• All OAuth parameters are included in JAR payload

• JAR expiration time is set (5 minutes recommended)

• Authorization URL only contains client_id and request parameters

• Session management is working

• Redirect URI matches registration

EdDSA (Ed25519 Key Pair)

• JAR is implemented (REQUIRED for confidential clients)

• Ed25519 key pair generated and stored securely

• JWKS endpoint is accessible and returns valid format

• JWT library supports EdDSA signing

• Public key registered with Oten IDP

• State parameter is generated and included in JAR

• All OAuth parameters are included in JAR payload

• JAR expiration time is set (5 minutes recommended)

• Authorization URL only contains client_id and request parameters

• Session management is working

• Redirect URI matches registration

For Public Clients (SPAs/Mobile) - PKCE Required, JAR Forbidden

• PKCE is implemented (REQUIRED for public clients)

• JAR is NOT used (FORBIDDEN for public clients)

• Code verifier generated with sufficient entropy (128 characters)

• Code challenge generated using SHA256 + Base64URL

• Code verifier stored securely (sessionStorage for SPAs, Keychain/Keystore for mobile)

• State parameter is generated and validated

• All OAuth parameters sent directly in authorization URL

• Authorization URL contains all required parameters (no JAR)

• HTTPS is enforced for all requests

• Redirect URI matches registration

• Client registered as public client type

📚 JAR Parameters Best Practices

🔒 Security Best Practices

// ✅ Secure JAR parameter generation
function createSecureJAR(authParams) {
  const now = Math.floor(Date.now() / 1000);

  return {
    // JWT Claims - Always include these
    iss: authParams.client_id,
    aud: 'https://account.oten.com',
    iat: now,
    exp: now + 300, // 5 minutes max
    jti: crypto.randomUUID(), // Unique for each request

    // OAuth Parameters - All required
    client_id: authParams.client_id,
    redirect_uri: authParams.redirect_uri,
    response_type: 'code',
    scope: authParams.scope,
    state: crypto.randomBytes(32).toString('hex'), // 32+ chars

    // PKCE - Always use for public clients
    code_challenge: authParams.code_challenge,
    code_challenge_method: 'S256',

    // Security enhancements
    nonce: crypto.randomBytes(16).toString('hex'),
    max_age: 3600 // Force re-auth after 1 hour
  };
}

🎯 Parameter Selection Guide

Use Case	Recommended Parameters	Example
Basic Login	Standard OAuth + PKCE	scope: "openid profile email"
Force Re-auth	Add max_age=0 + prompt=login	max_age: 0, prompt: "login"
Silent Auth	prompt=none	prompt: "none" (will fail if not logged in)
Multi-language	ui_locales	ui_locales: "vi-VN en-US"
Workspace App	workspace_hint	workspace_hint: "workspace-123"
High Security	Short expiry + nonce	exp: now + 60, nonce: "random"

🔄 Parameter Lifecycle Management

class JARParameterManager {
  constructor(clientId, clientSecret) {
    this.clientId = clientId;
    this.clientSecret = clientSecret;
    this.activeRequests = new Map(); // Track active JAR requests
  }

  async createJAR(authParams, options = {}) {
    // Validate parameters
    const validationErrors = this.validateParameters(authParams);
    if (validationErrors.length > 0) {
      throw new Error(`Invalid parameters: ${validationErrors.join(', ')}`);
    }

    const now = Math.floor(Date.now() / 1000);
    const jti = crypto.randomUUID();

    const jarPayload = {
      // Standard claims
      iss: this.clientId,
      aud: 'https://account.oten.com',
      iat: now,
      exp: now + (options.expirySeconds || 300),
      jti: jti,

      // OAuth parameters
      ...authParams,

      // Optional parameters
      ...options.additionalParams
    };

    // Track this request
    this.activeRequests.set(jti, {
      created: now,
      state: authParams.state,
      codeVerifier: authParams.code_verifier
    });

    // Clean up expired requests
    this.cleanupExpiredRequests();

    return jwt.sign(jarPayload, this.clientSecret, { algorithm: 'HS256' });
  }

  validateParameters(authParams) {
    const errors = [];

    // Required parameters
    if (!authParams.client_id) errors.push('client_id is required');
    if (!authParams.redirect_uri) errors.push('redirect_uri is required');
    if (!authParams.state || authParams.state.length < 32) {
      errors.push('state must be at least 32 characters');
    }

    return errors;
  }

  cleanupExpiredRequests() {
    const now = Math.floor(Date.now() / 1000);
    for (const [jti, request] of this.activeRequests) {
      if (now - request.created > 600) { // 10 minutes
        this.activeRequests.delete(jti);
      }
    }
  }

  getRequestData(state) {
    for (const [jti, request] of this.activeRequests) {
      if (request.state === state) {
        return request;
      }
    }
    return null;
  }
}

JAR Parameter Monitoring

// Monitor JAR creation and usage
class JARMonitor {
  constructor() {
    this.metrics = {
      created: 0,
      expired: 0,
      failed: 0,
      algorithms: { HS256: 0, EdDSA: 0 }
    };
  }

  logJARCreation(algorithm, expiryTime) {
    this.metrics.created++;
    this.metrics.algorithms[algorithm]++;

    console.log(`JAR created: algorithm=${algorithm}, expires_in=${expiryTime}s`);
  }

  logJARFailure(error, parameters) {
    this.metrics.failed++;

    console.error('JAR creation failed:', {
      error: error.message,
      client_id: parameters.client_id,
      scope: parameters.scope,
      timestamp: new Date().toISOString()
    });
  }

  getMetrics() {
    return {
      ...this.metrics,
      success_rate: this.metrics.created / (this.metrics.created + this.metrics.failed)
    };
  }
}

⚠️ Common Mistakes to Avoid

For Confidential Clients (JAR)

• ❌ Don't send parameters in URL query - Oten will reject them for confidential clients

• ❌ Don't use unsupported algorithms - Only HS256 and EdDSA are supported

• ❌ Don't forget kid in JWT header for EdDSA - Must match your JWKS

• ❌ Don't make JAR expire too long - 5 minutes maximum recommended

• ❌ Don't store private keys in client-side code - Use backend for SPAs

• ❌ Don't use RSA keys - Oten only supports HS256 and EdDSA

• ❌ Don't reuse JTI values - Each JAR must have unique identifier

• ❌ Don't include sensitive data - JAR is base64 encoded, not encrypted

For Public Clients (PKCE)

• ❌ Don't use JAR - JAR is forbidden for public clients

• ❌ Don't use weak code verifiers - Must be 128 characters with sufficient entropy

• ❌ Don't store code verifier insecurely - Use sessionStorage (SPA) or Keychain/Keystore (mobile)

• ❌ Don't skip state validation - Always validate state parameter to prevent CSRF

• ❌ Don't use HTTP - HTTPS is required for all OAuth flows

• ❌ Don't include client_secret - Public clients must not use client secrets

---

Next: Step 4: Handle Callback
