Detailed Setup Guide
I. Set up KMS KACLS Service for Google Workspace
Emails utilizing the wrap/unwrap mechanism must ensure they share the same Key service (KMS KACLS Service URL) in order to successfully send and receive emails to one another.
In addition, in the admin.google.com, the admin must also ensure that this correct Key service has been added and assigned in order to use the feature.
II. How to get your credentials (Service account & CA certificated)
Open Google Cloud Console
Access to console.cloud.google.com and Sign in.
Navigate to Service Accounts
Go to IAM & Admin -> Service Accounts
If you don’t have a project yet, create a new project before proceeding:
Input Project name and select Organization:
New project is created:
Create a Service Account
Click Create service account -> Enter Service account name -> Click Done
Skip optional steps:
Permissions
Principals with access Key
New service account is created
Generate service account key
Click on created service account -> Keys -> Add key -> Create new key -> Choose JSON -> Create -> Download and Save file
Note: you must have role Organization Policy Administrator (roles/orgpolicy.policyAdmin) to get Service account key.
Enable Gmail API
Search for Gmail API
Click on Enable for Gmail API
Upload service account key at KMS system
Admin go to Organization Admin -> Gmail Provisioning feature
Click on Start verification
Upload the downloaded JSON file to the required system below

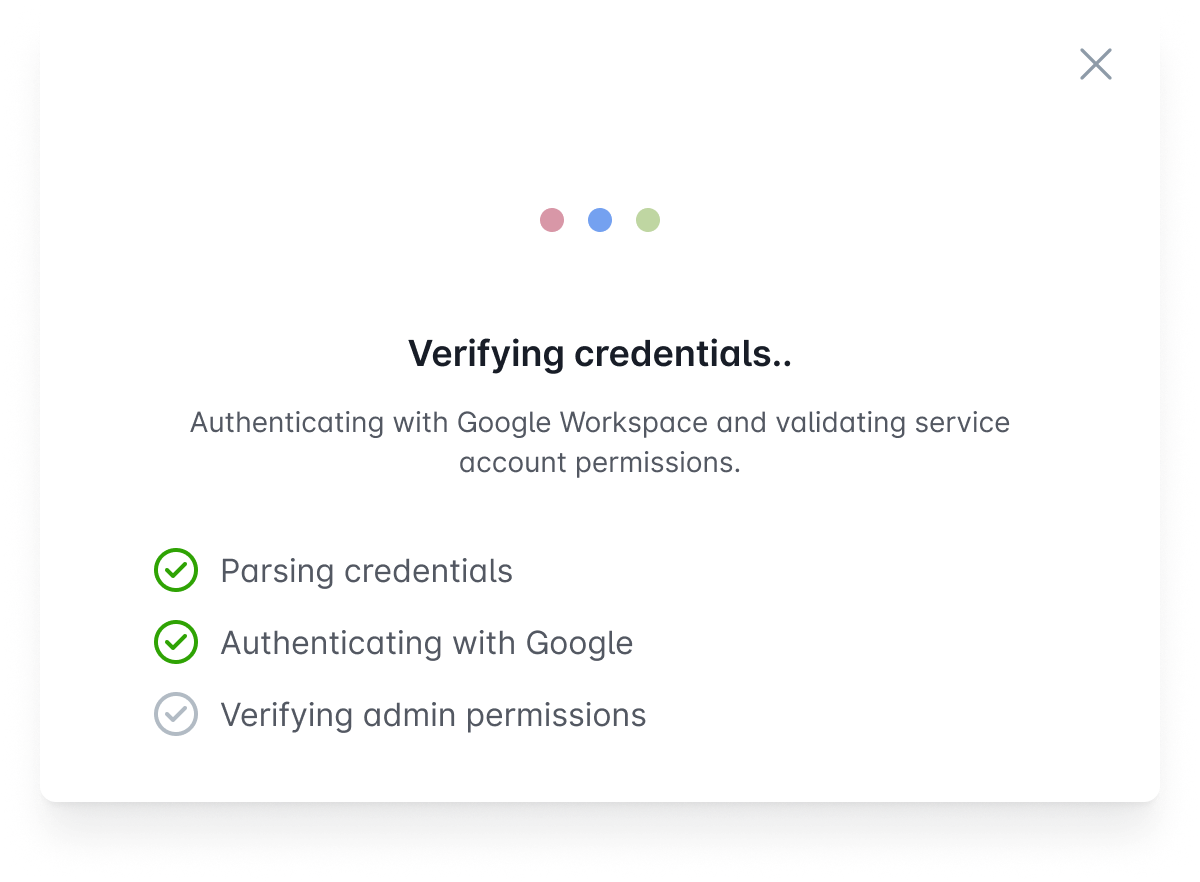

Click Verify and waiting verification process
Download CA Certificate
After service account is verified -> CA file will be auto generate by system
Admin need to download file and go to next step
Download file to local
Upload to Google Admin Console
Open Google workspace admin console: admin.google.com
Navigate to Apps -> Google Workspace -> Gmail -> User setting
At S/MIME section, enable S/MIME encryption for sending and receiving emails
Then, enable Allow users to upload their own certificates
Then, click ADD button -> UPLOAD ROOT CERTIFICATE
Upload CA file with .pem formatformat
Input Org domain
Click Done and waiting for Google approve (around 24 hours)
Approval process maybe take upto 24 hours, refer doc link
III. Setup provisioning job for email & send/receive mail
Setup provisioning job
Click on Provisioning setup
Select Manual input or Upload file with provided template
Note: The emails being used must share the same key service (KACLS) in order to be authorized to use the key for Wrap/Unwrap operations.
Select a workspace
Select a key (Symmetric AES or CHACHA20 256bits)
Click on Start provisioning and waiting until job completed
Send/Receive mail with encryption/decryption method
After provisioning job is completed
User can compose new email
Turn on Additional encryption
Mail is encrypted
When sending mail, user need to sign in to verify account
Receiver received mail with encryption
Then, receiver must sign in to verify account to view the content email body
